Description

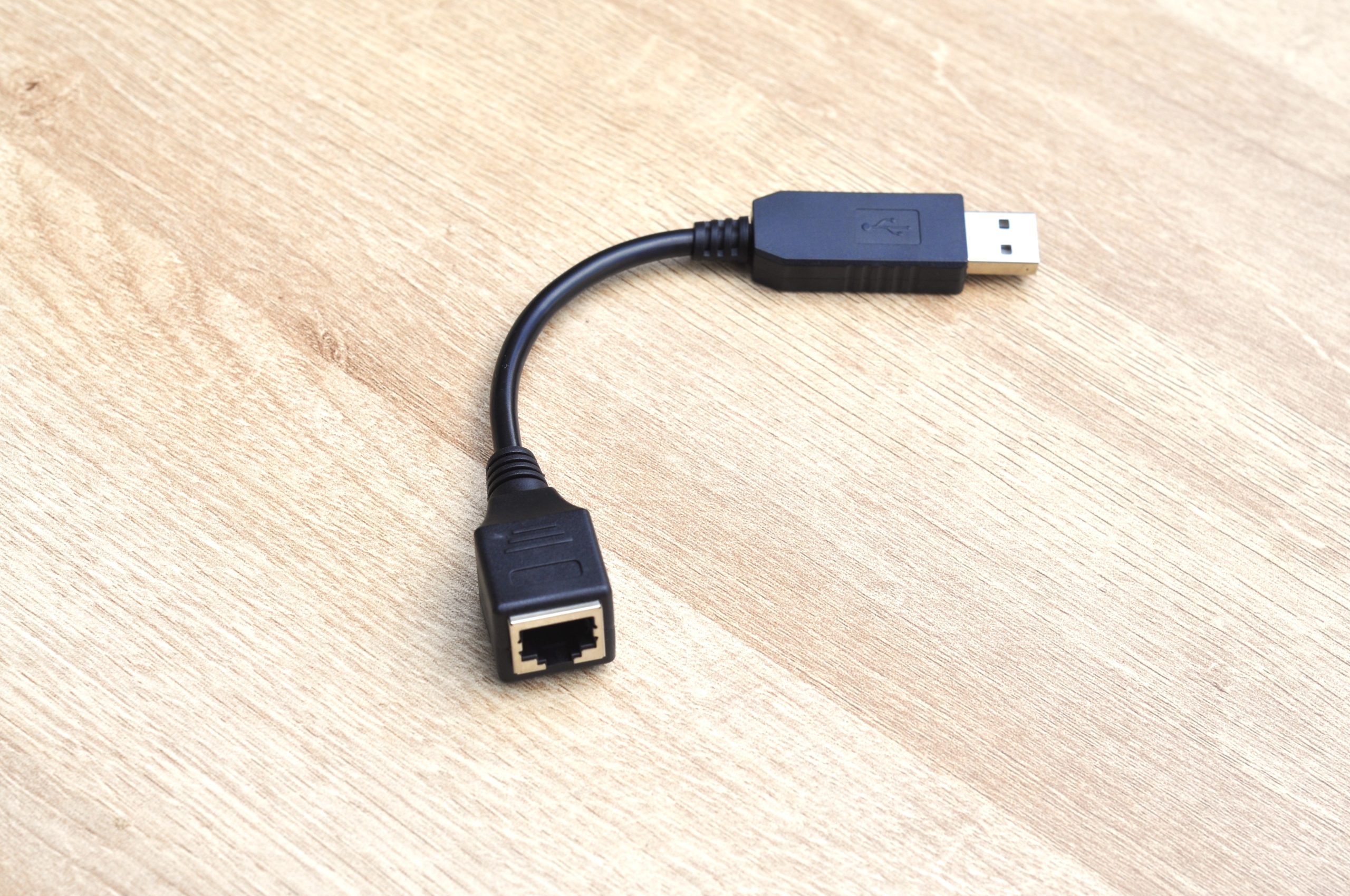

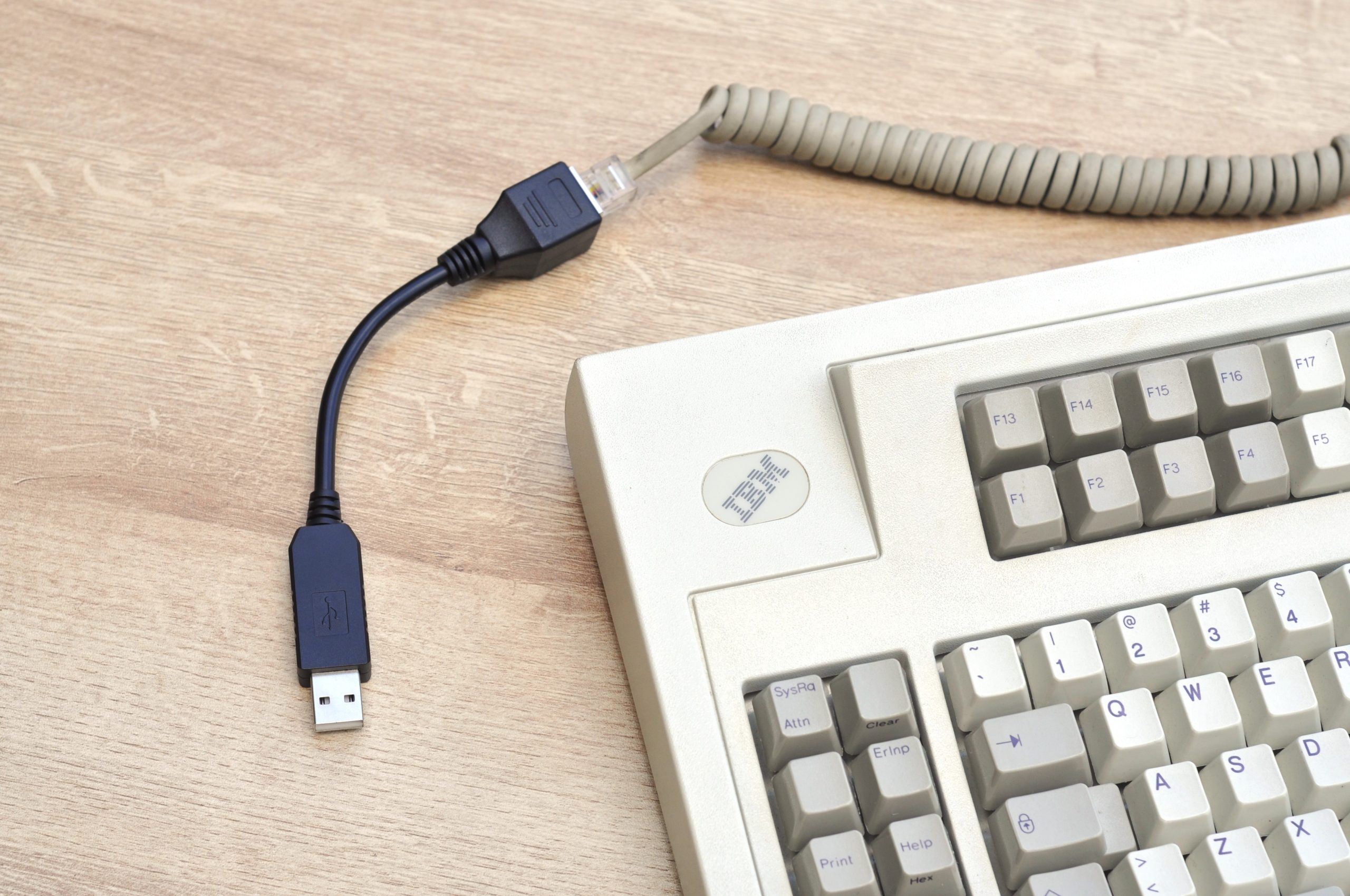

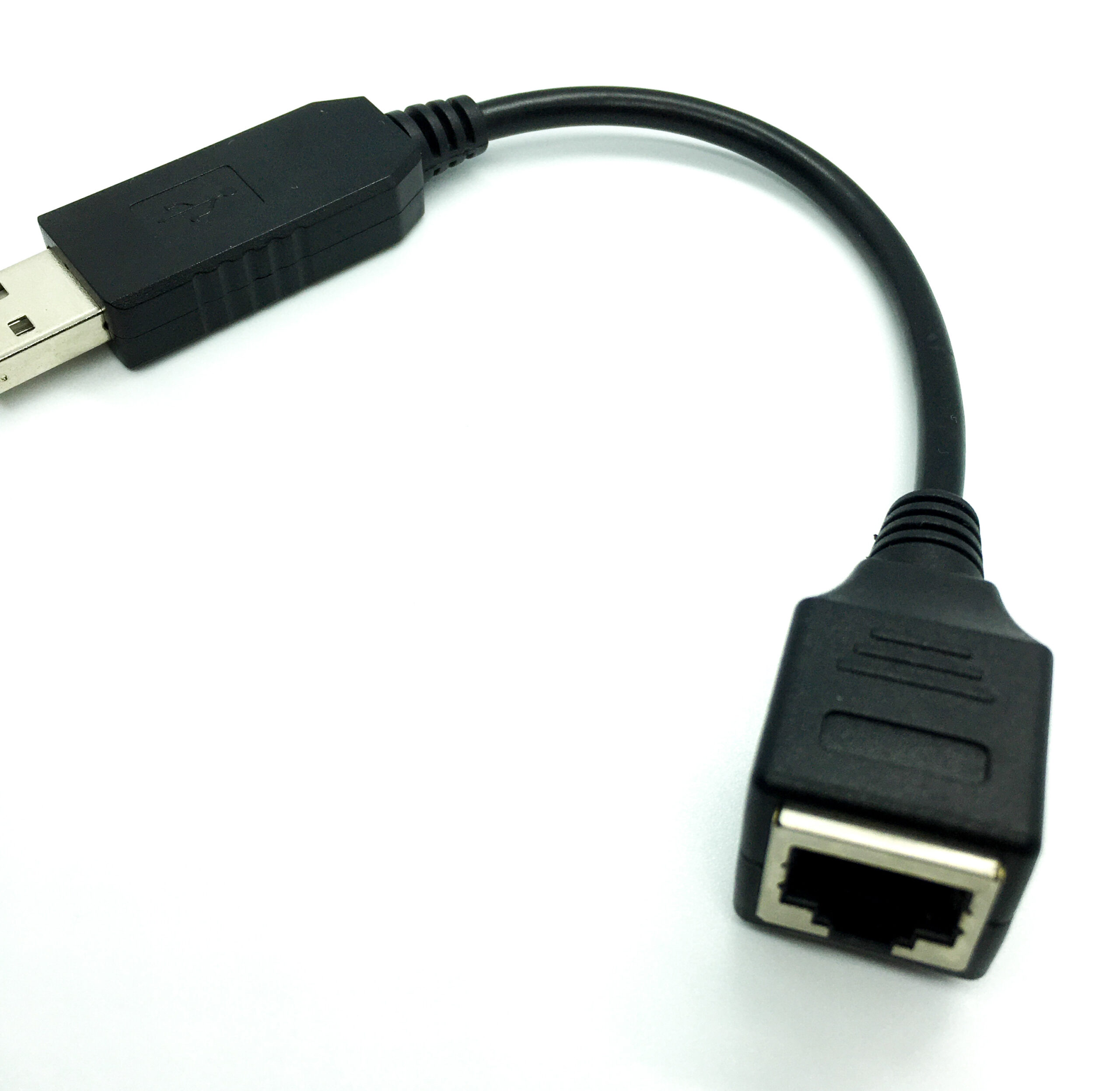

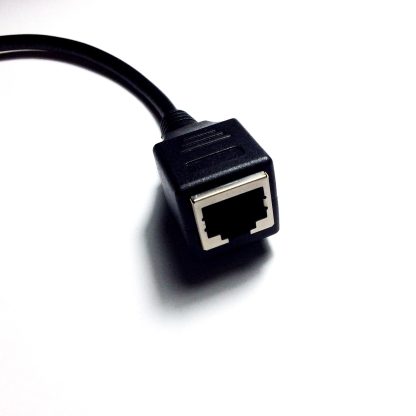

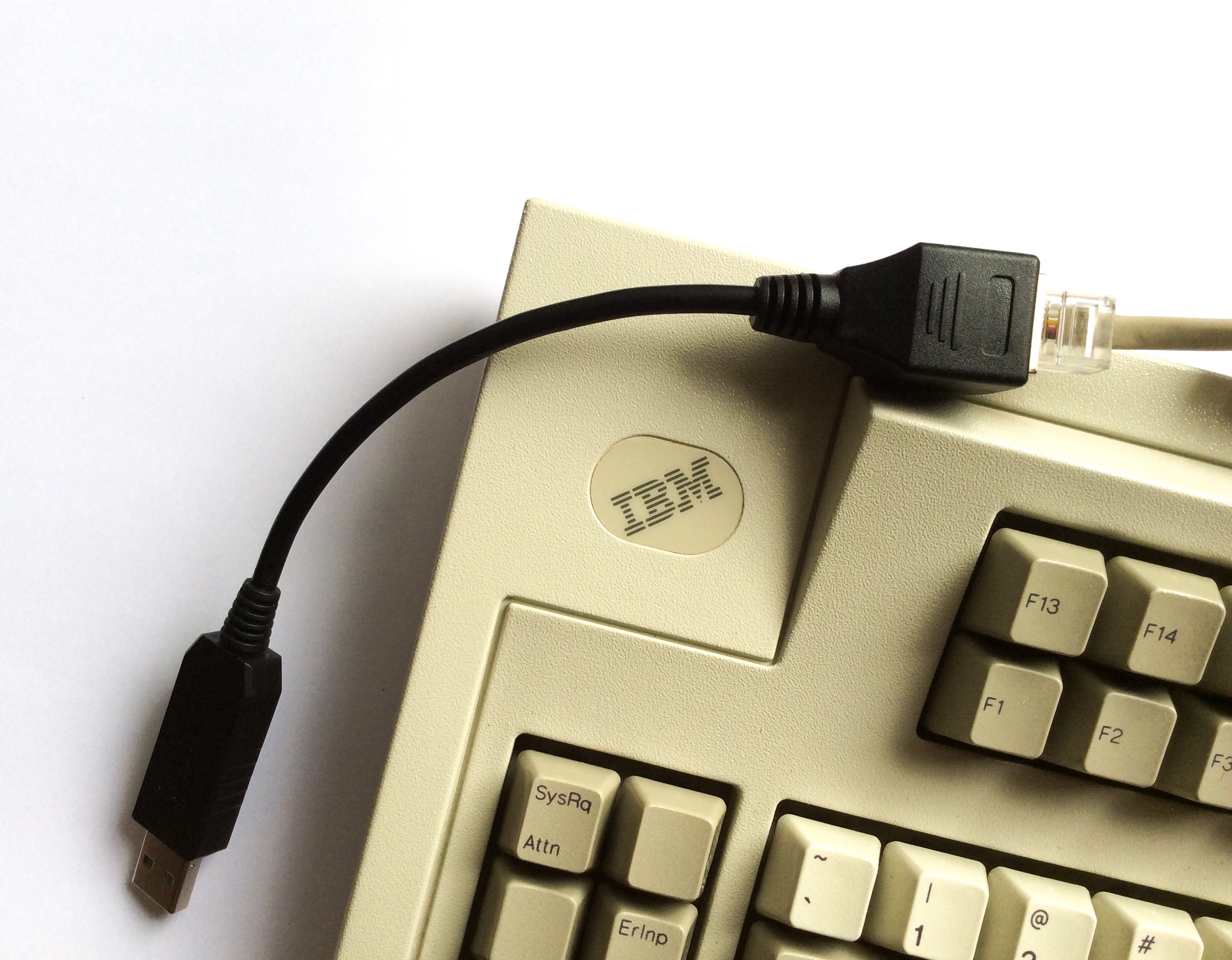

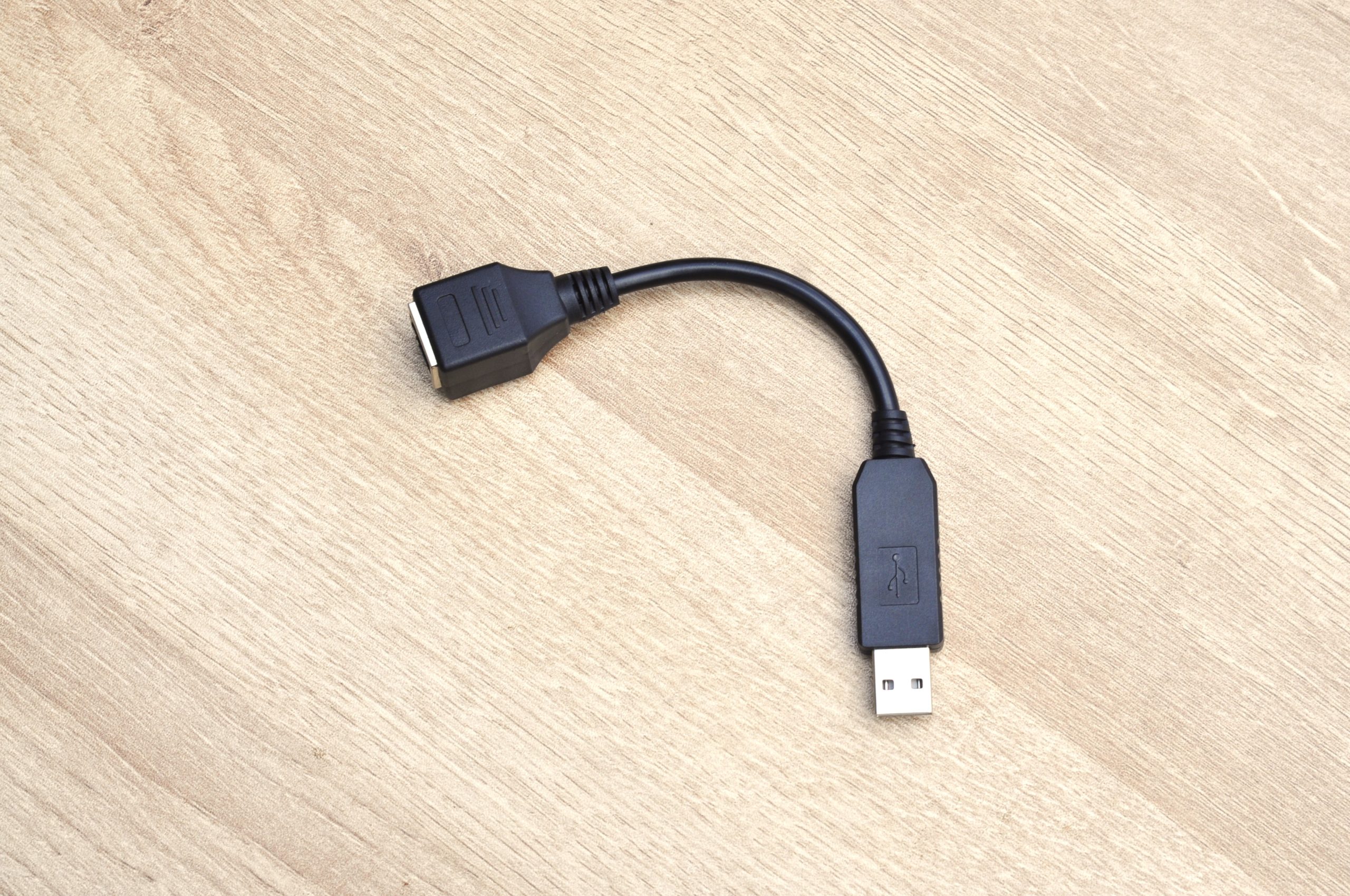

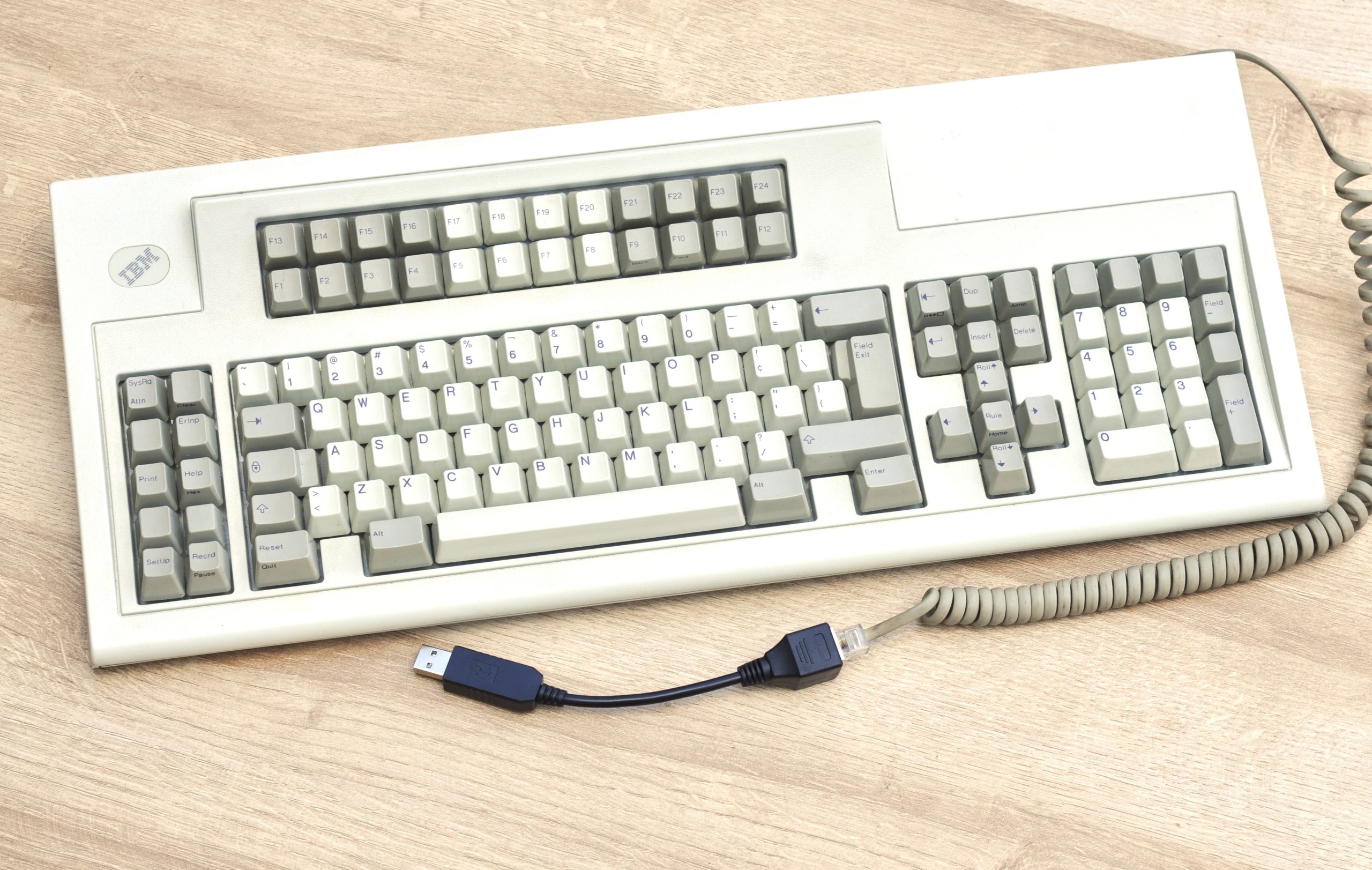

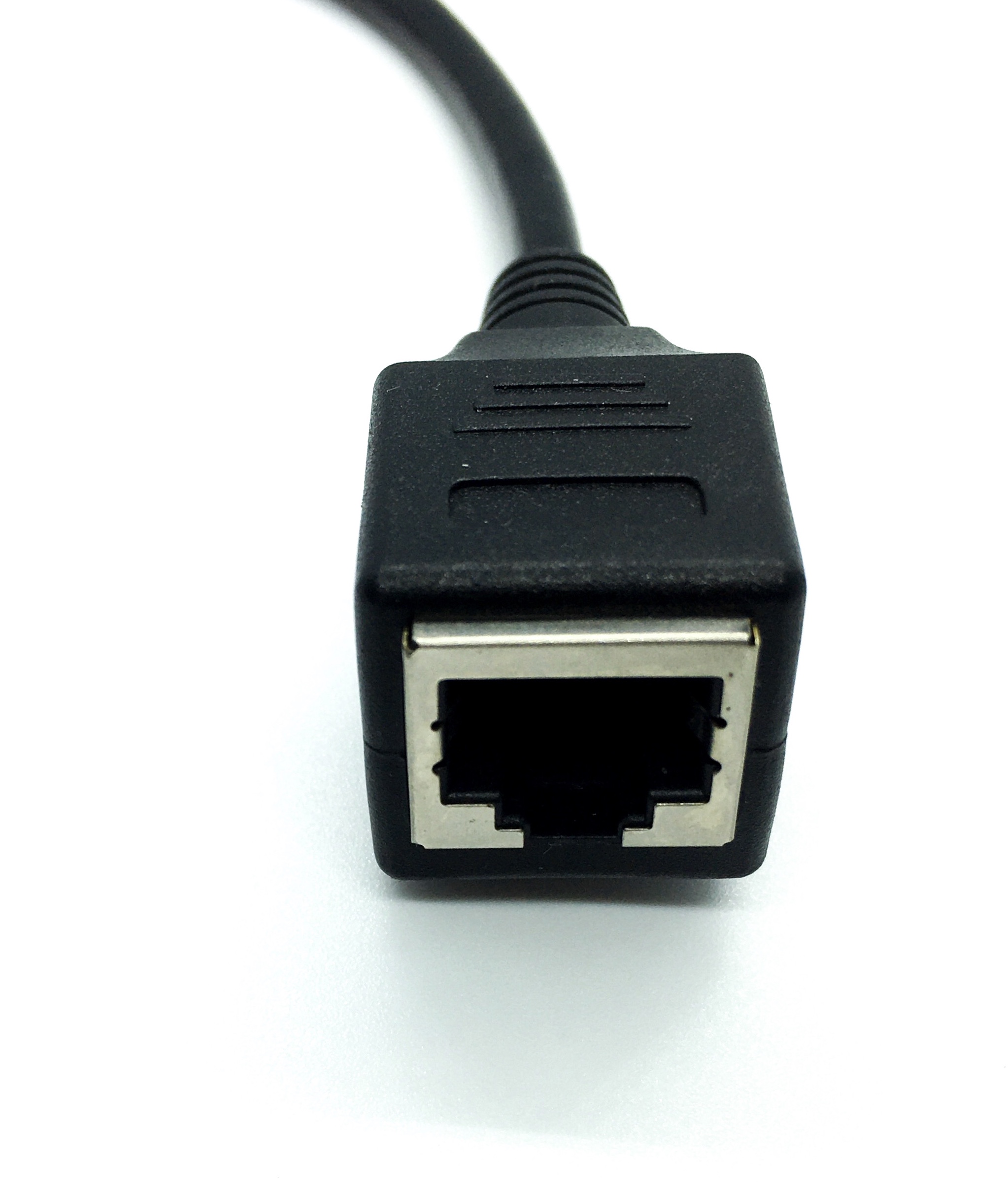

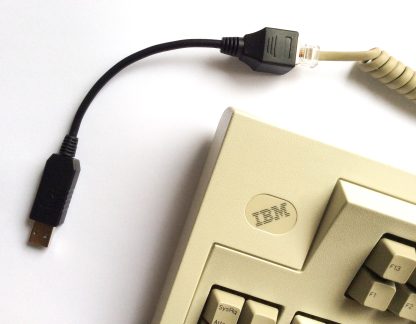

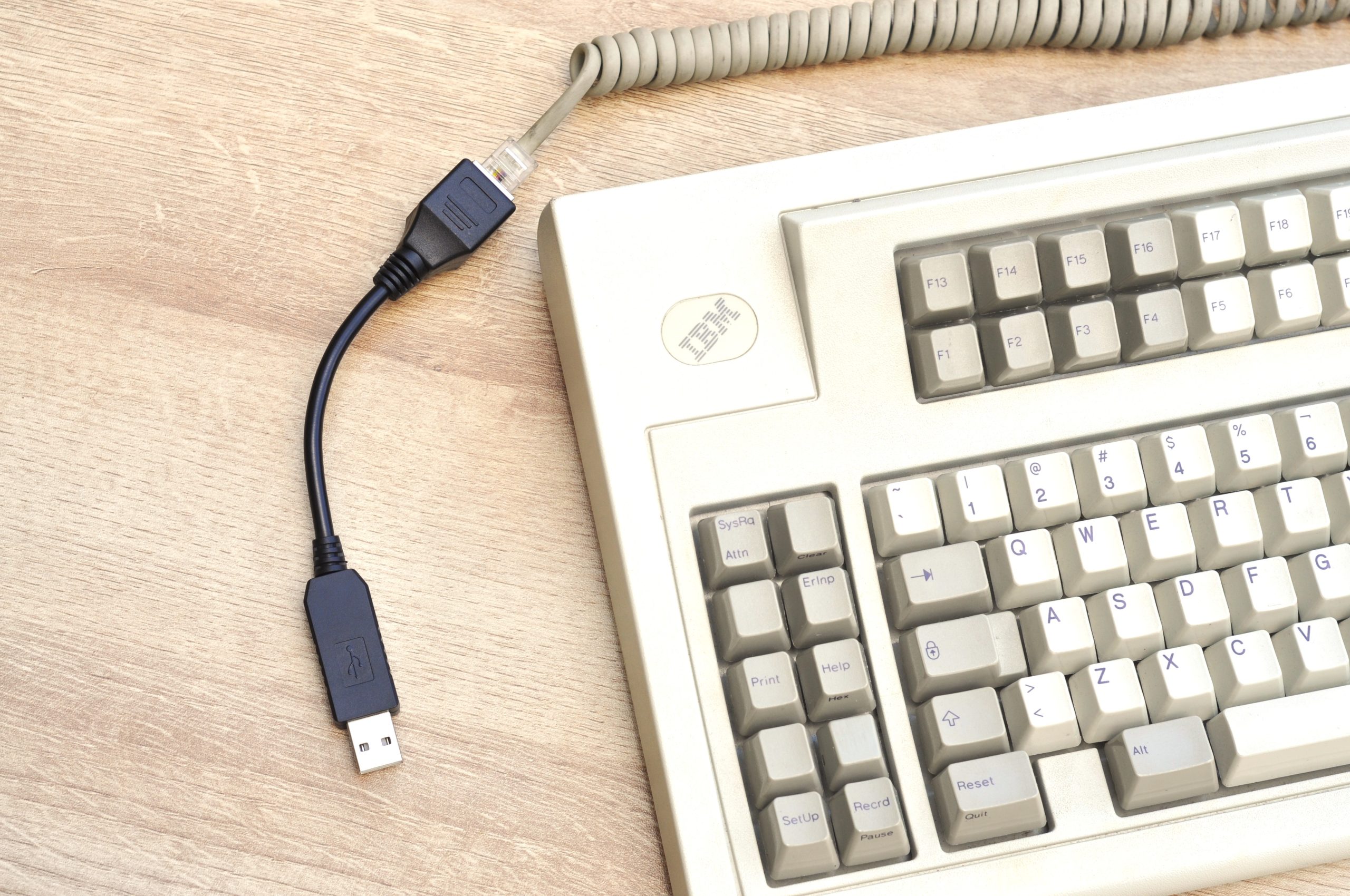

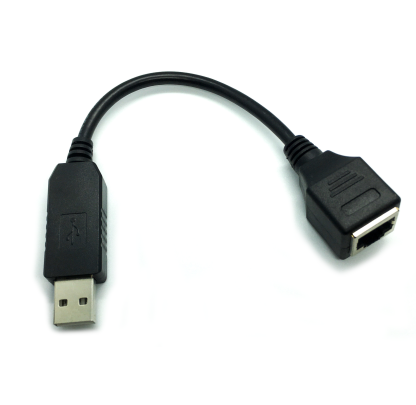

tinkerBOY Terminal RJ45 to USB Converter v1.0 now uses QMK Firmware (a lot better than Soarer’s converter firmware) so you can use your old IBM Model M Terminal and compatible keyboards on a modern computer with USB support.
NEW: You can now purchase an adapter with QMK Firmware supporting both Via and Vial. VIA is a feature of QMK Firmware while Vial is a fork of QMK Firmware. Vial is an open-source cross-platform (Windows, Linux and Mac) GUI application and a QMK fork for configuring your keyboard in real time. For more info about Vial please go to their website at https://get.vial.today/.
Take a look at some screenshots.
2 Ways to remap or configure your keyboard with QMK in realtime:
-
Vial – Download the Vial app or use the online app available at get.vial.today (recommended).
Features:
- Remapping (realtime)
- Layers
- Macros
- Full NKRO, if the keyboard supports it.
- Compatible with Windows, MacOS, and Linux.
- Scan code set 3
- Combos
- Tap Dance
***All converters are fully tested.
Related Products:
-
tinkerBOY ADB Keyboard/Mouse to USB Converter with QMK Firmware and Via support
Select options This product has multiple variants. The options may be chosen on the product page -
tinkerBOY IBM Model F XT / Model M AT Keyboard (180 Degree, 5-pin DIN) To USB Converter with Vial QMK Firmware
Add to cart -
tinkerBOY M0110 Keyboard To USB Converter for the Apple Macintosh 128K/512K/Plus Keyboard with QMK Firmware and VIA support
Add to cart -
tinkerBOY IBM Terminal Keyboard (240 Degree, 5-pin DIN) to USB Converter with Vial QMK Firmware
Add to cart -
tinkerBOY PS/2 Keyboard To USB Converter Adapter with Vial QMK Firmware
Add to cart -
tinkerBOY PS/2 Keyboard to Mac Converter / Adapter for Macintosh with 4P4C Keyboard Port
Add to cart -
tinkerBOY AT2XT Keyboard Converter Adapter (AT or PS/2 Keyboard to XT)
Add to cart
nkro –
Very nice converter! works out of the box!
Pkeyb –
Yes it is nice, and works out of the box on Linux. The only problem is to find an Esc key, probably not mapped. The other problem is a price – quite big, especially with added shipping cost, sadly cost much more than keyboard…
tinkerBOY –
You can remap the keys, https://deskthority.net/keyboards-f2/examples-of-soarer-converter-configuration-files-please-t8477.html#p390537
ibmguy11 –
hey bro, got any more of these? how much with shipping and taxes to NV USA?
JC –
The Thinker Boy sent the converter very quickly and it works excellent with my IBM Model M 1395162 Terminal KB. However, there are several keys, specially at Num Key Pad that are incorrectly mapped. Does anybody knows what software do I need to edit/write the converter’s firmware and where to donwload it?
WG –
I’ve always wanted my own Model M keyboard. A few days ago, I found one on my local used goods app, managed to get one for about 8 dollars 50 cents USD. The only hitch is that the keyboard uses an RJ45 cable instead of anything I’ve ever seen before. I guess I picked up a 1987 terminal model. Did a bit of googlin’ and found tinkerboy sold a converter. I still need to remap some keys, but it works without a hitch, and looks and sounds beautiful.
I’ll continue to research how to remap keys, but so far the only keys that don’t seem to map well are ESC (on my keyboard, ‘Jump’ is ESC)
I’m just happy to get to type on it, and it is working. Thanks.
ModemBlaster –
Ordered two of em; both stopped working due to poor solder job (wires more or less came right off)
Would resolder it, but don’t know which wires (red, green, yellow, grey) go where (S, D, C, G)
tinkerBOY –
Sorry about that. I have already fixed this issue with the new adapter.

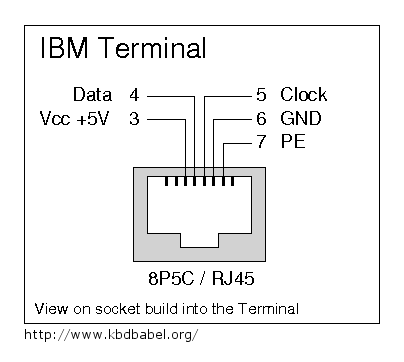

Here are the pinouts:
RED wire -> 5V
WHITE wire -> D
GREEN wire -> C
BLACK wire -> G
Jabberwock –
My converter stopped working pretty quickly and I thought I had messed it up. A year later, I saw the comment above and decided to open it up. Sure enough, two wires had come loose.
But my wiring is different.
RED wire -> [Disconnected]
WHITE wire -> [Disconnected]
GREEN wire -> 5V
YELLOW wire -> G
Where should those two wires (red and white) go?
tinkerBOY –
Here are the pinouts:
RED wire -> C
WHITE wire -> D
GREEN wire -> 5V
YELLOW wire -> G
