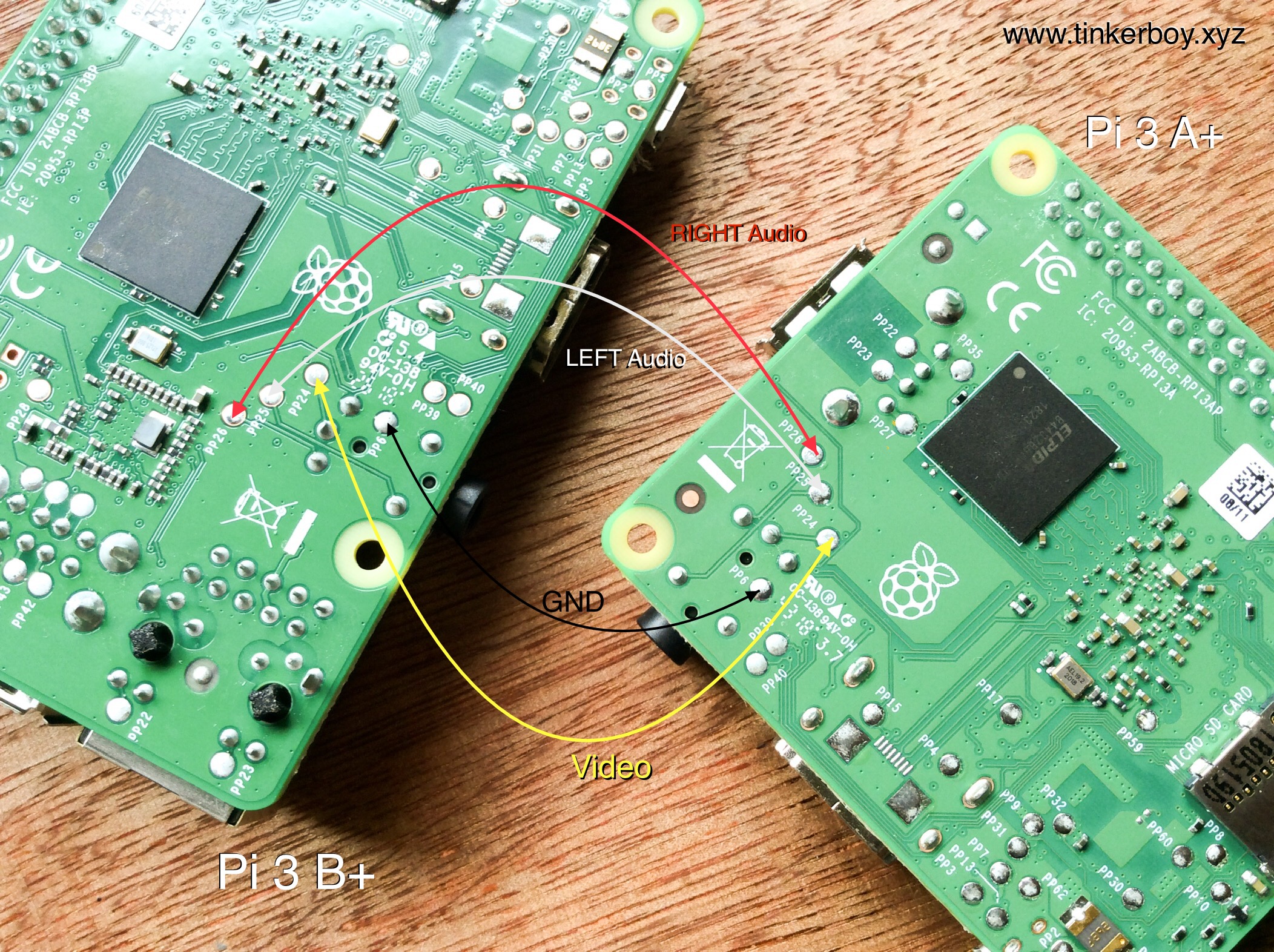

Raspberry Pi 3 Audio and Composite Video Pinout

These are the pins for the left and right audio as well as composite video on any Raspberry Pi 3 models.
