tinkerBOY Add-On Board – with Pre-soldered USB Type A Port and 3-Pin Volume Wheel, Back Buttons

Rated 5.00 out of 5 based on 3 customer ratings
(3 customer reviews)

$5.95$7.95

NEW! tinkerBOY Add-On Board with pre-soldered USB Type A Port and 3-Pin Volume Wheel. You can choose from two different add-on boards with or without the tactile buttons.

Clear
SKU: TAB Categories: ,

Description

NEW! tinkerBOY Add-On Board with pre-soldered USB Type A Port and 3-Pin Volume Wheel for Game Boy Zero build. You can choose from two different add-on boards with or without the tactile back buttons.

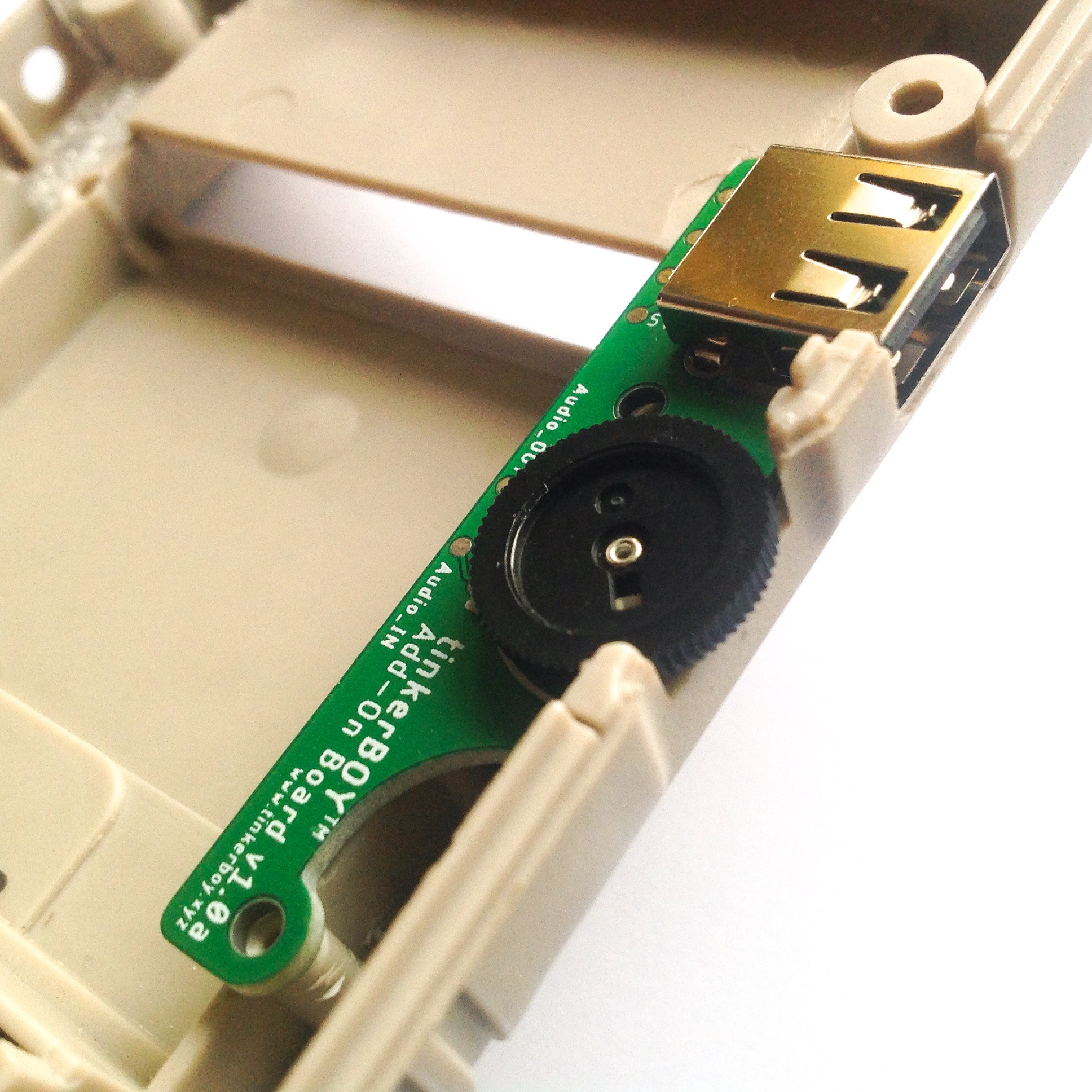

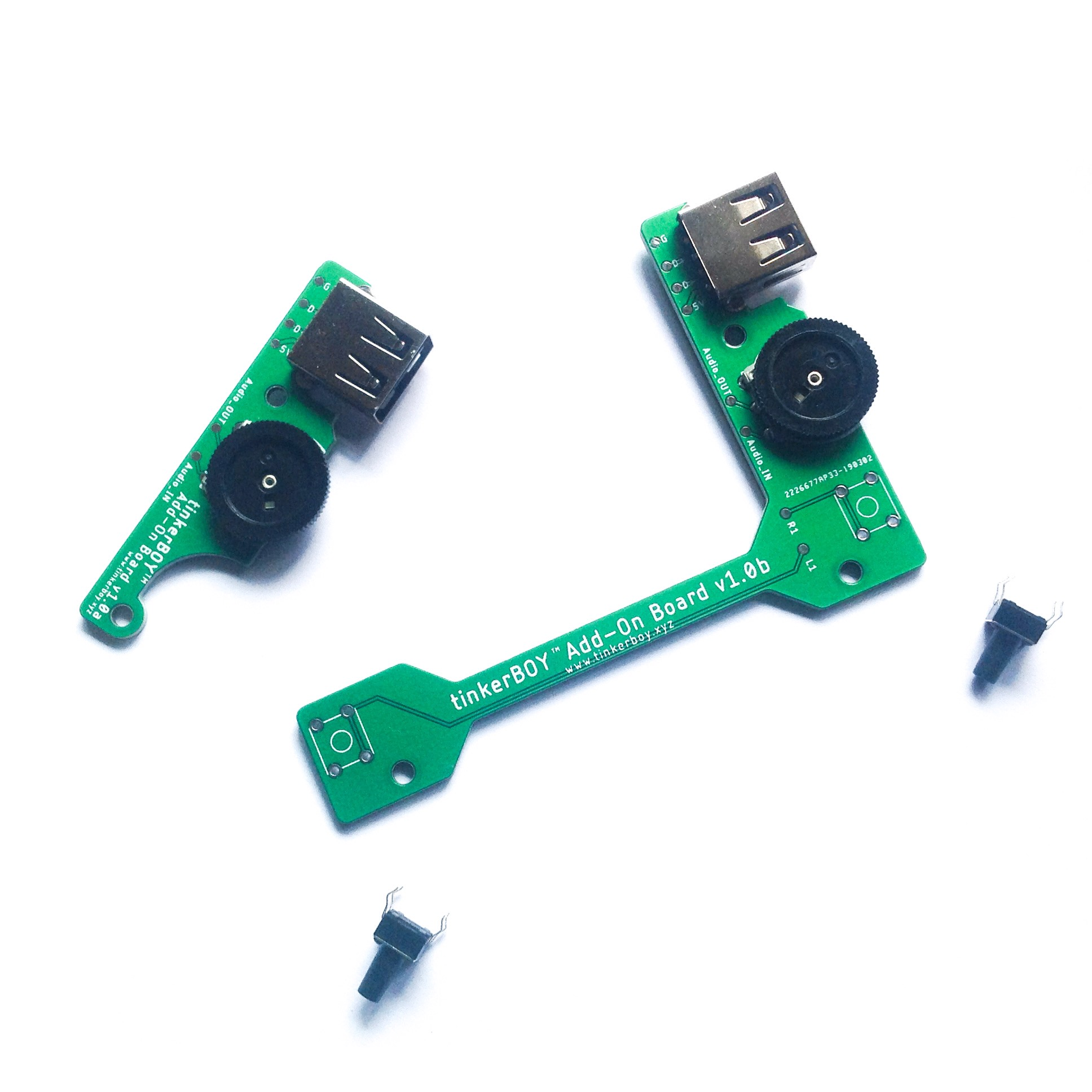

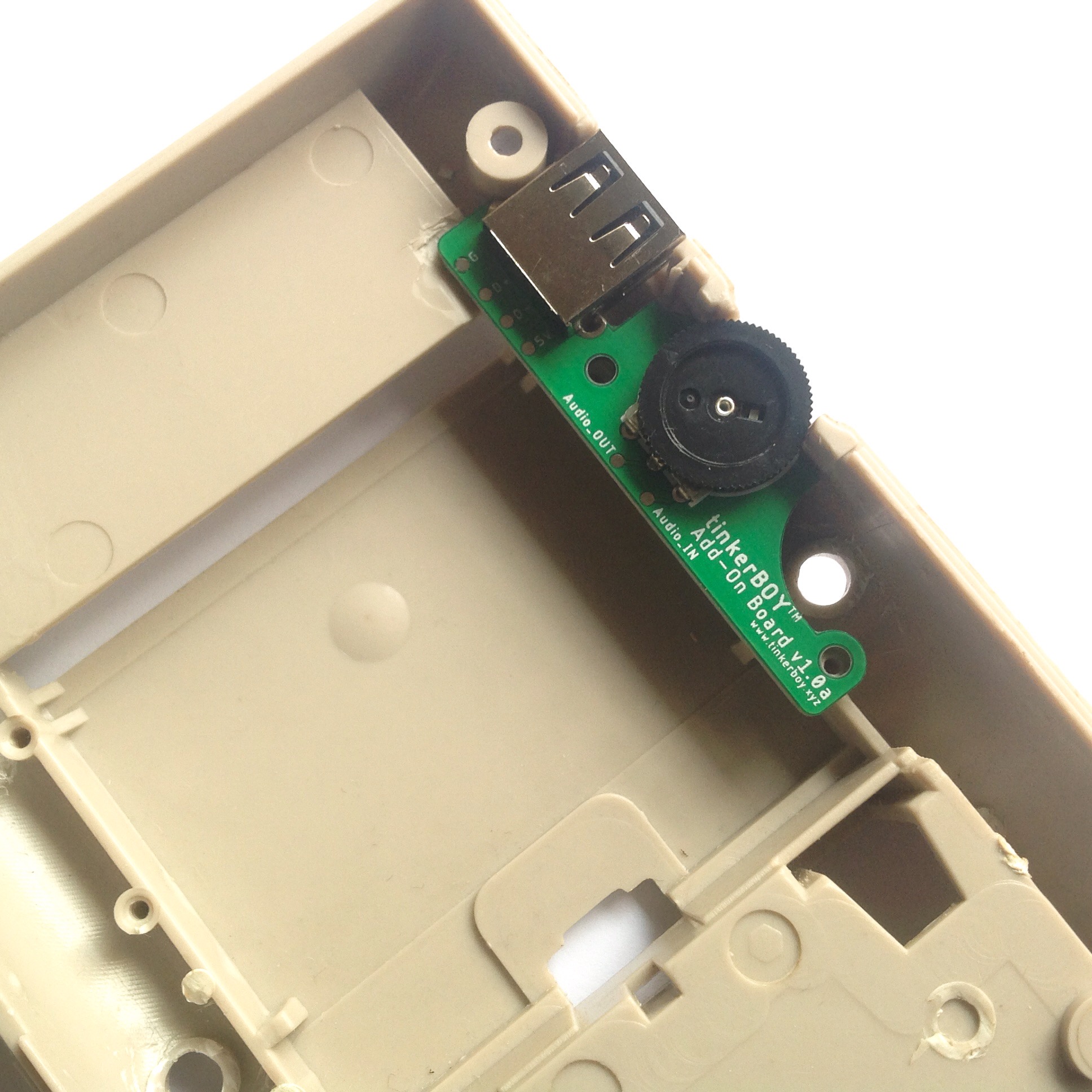

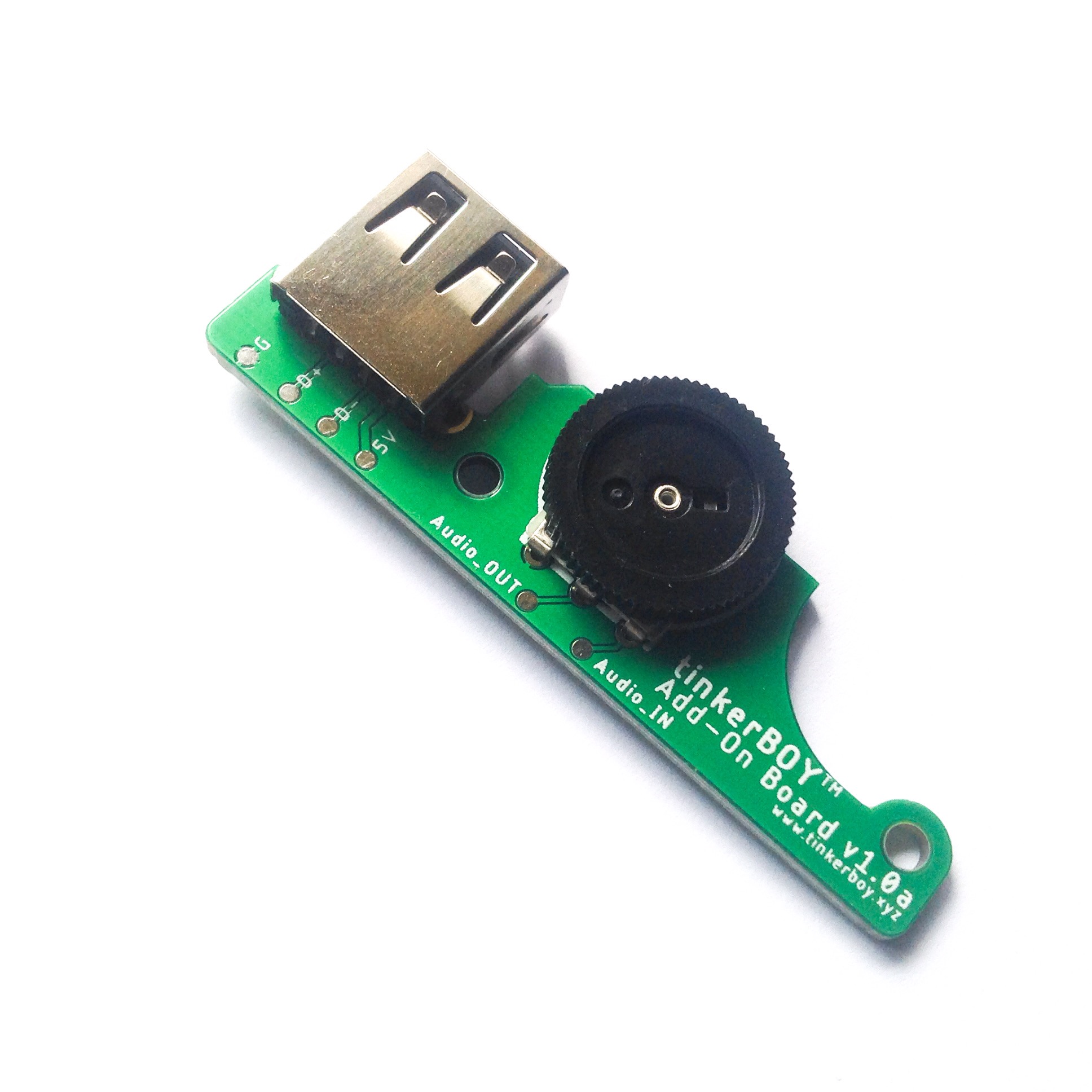

  1. tinkerBOY Add-On Board v1.0a – without the back buttons.

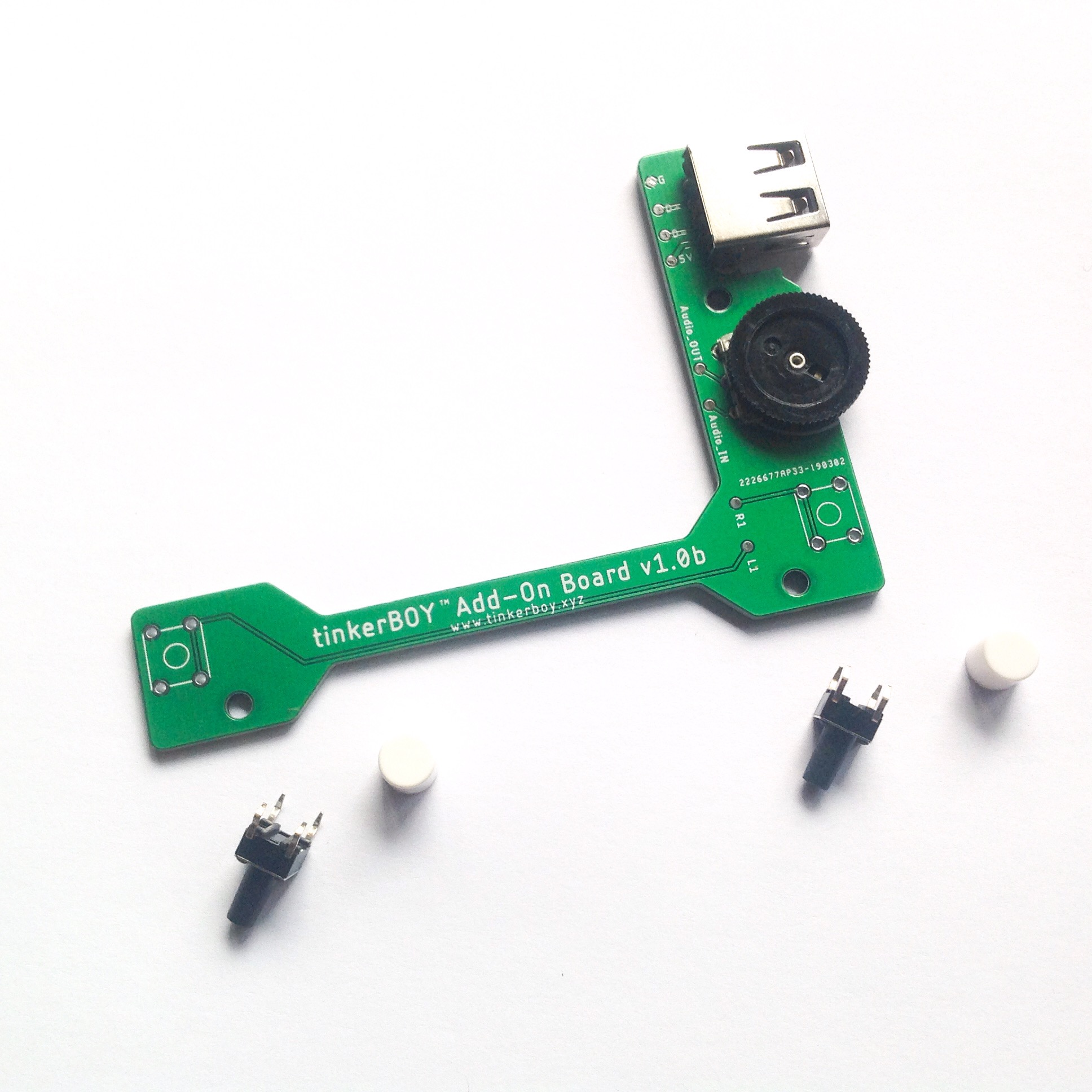

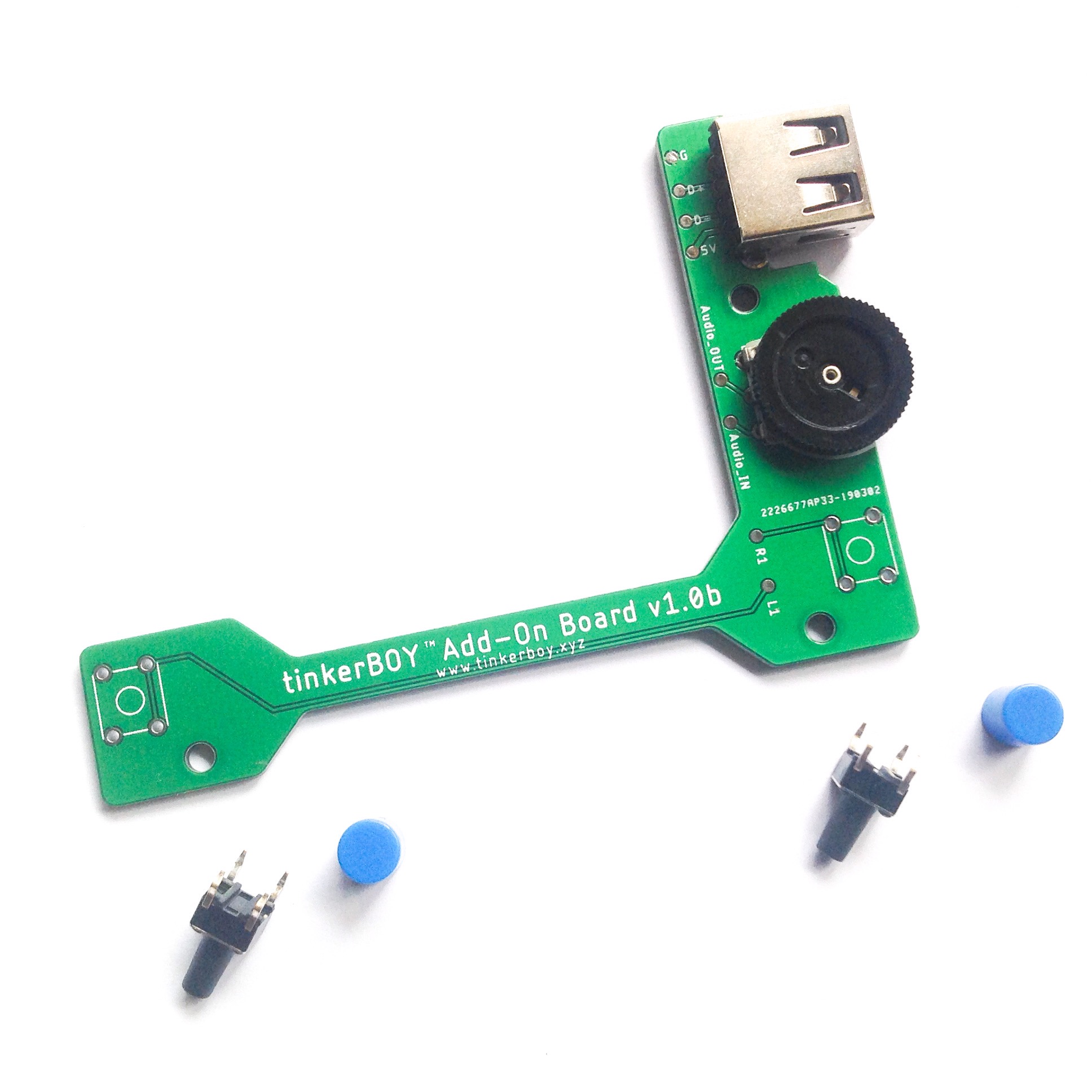

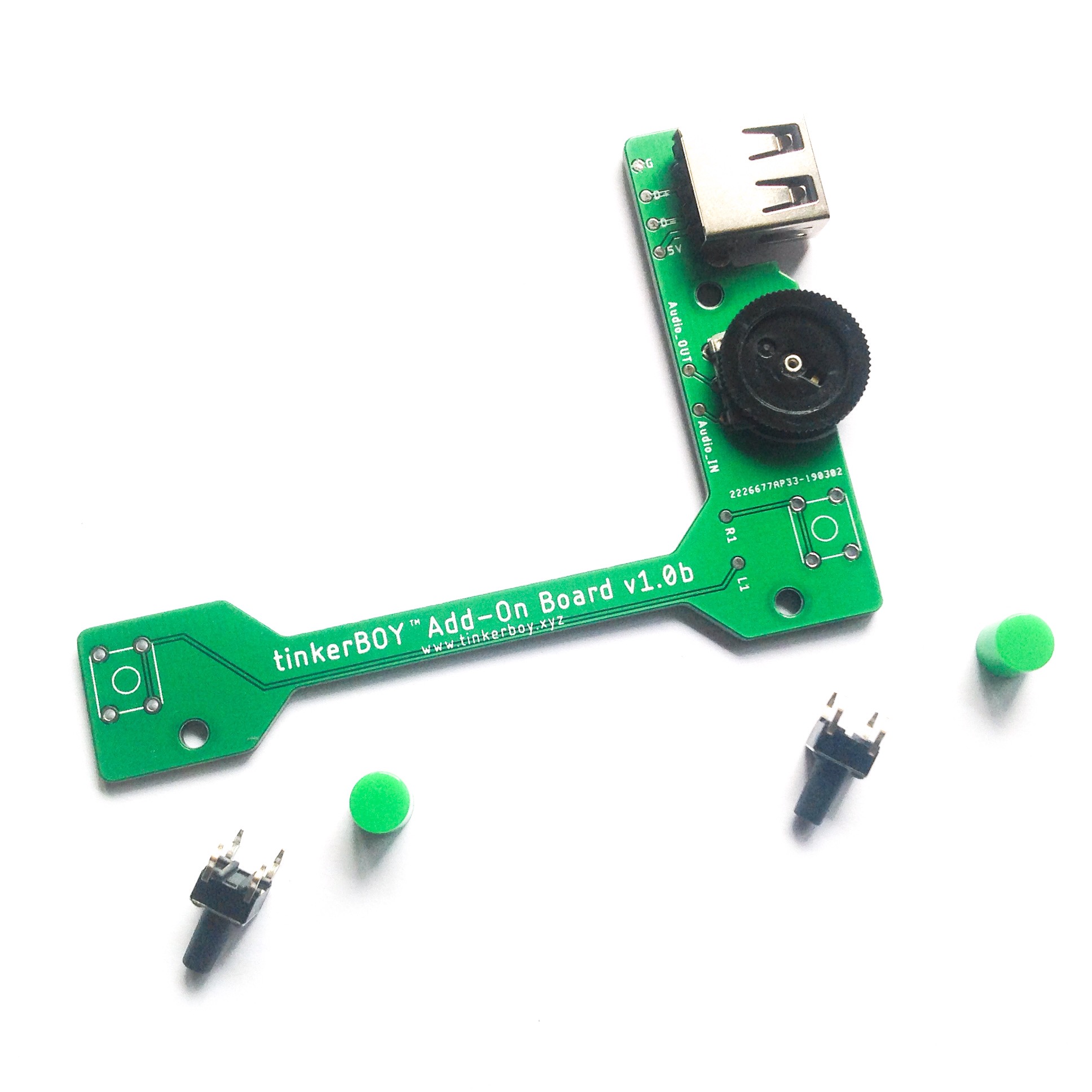

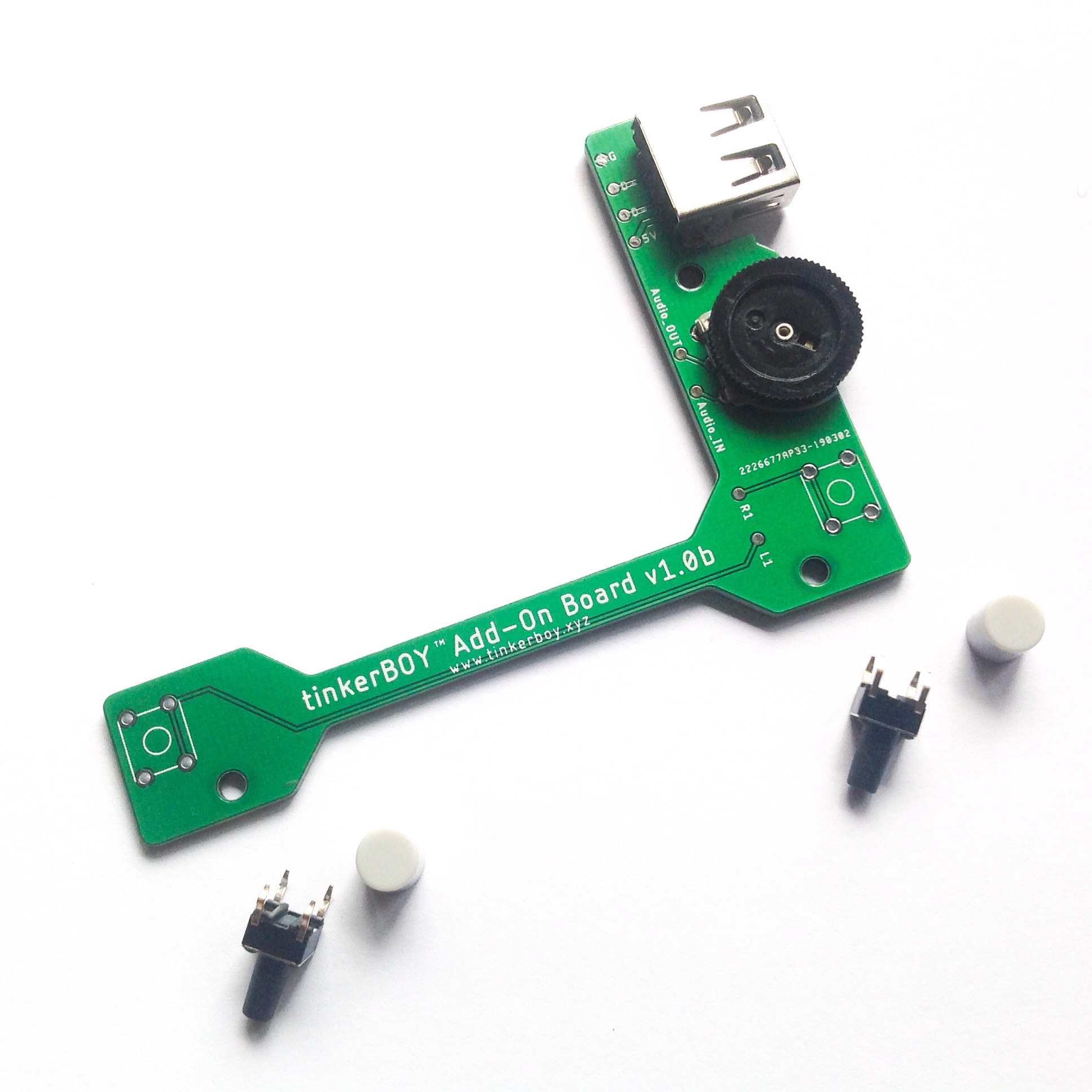

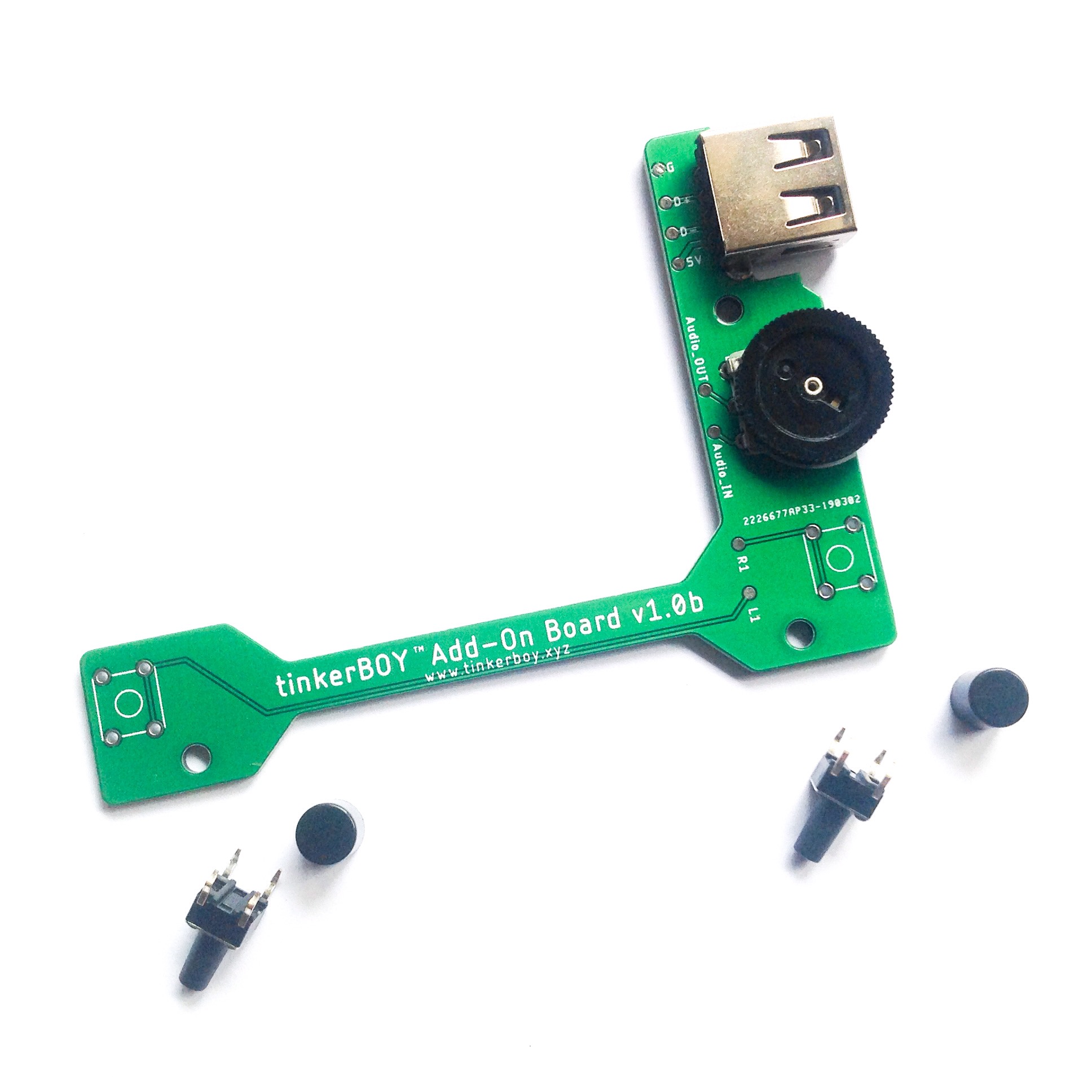

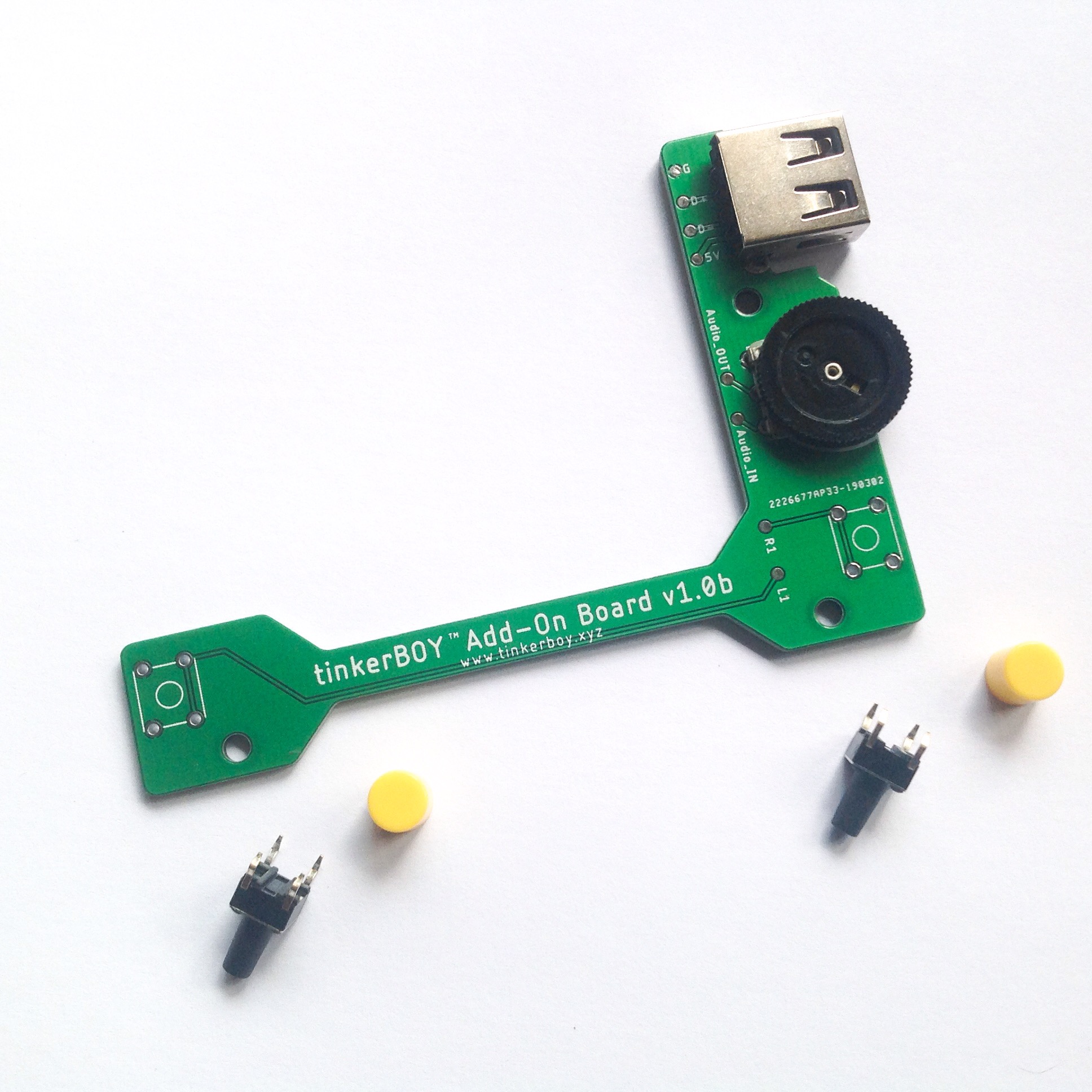

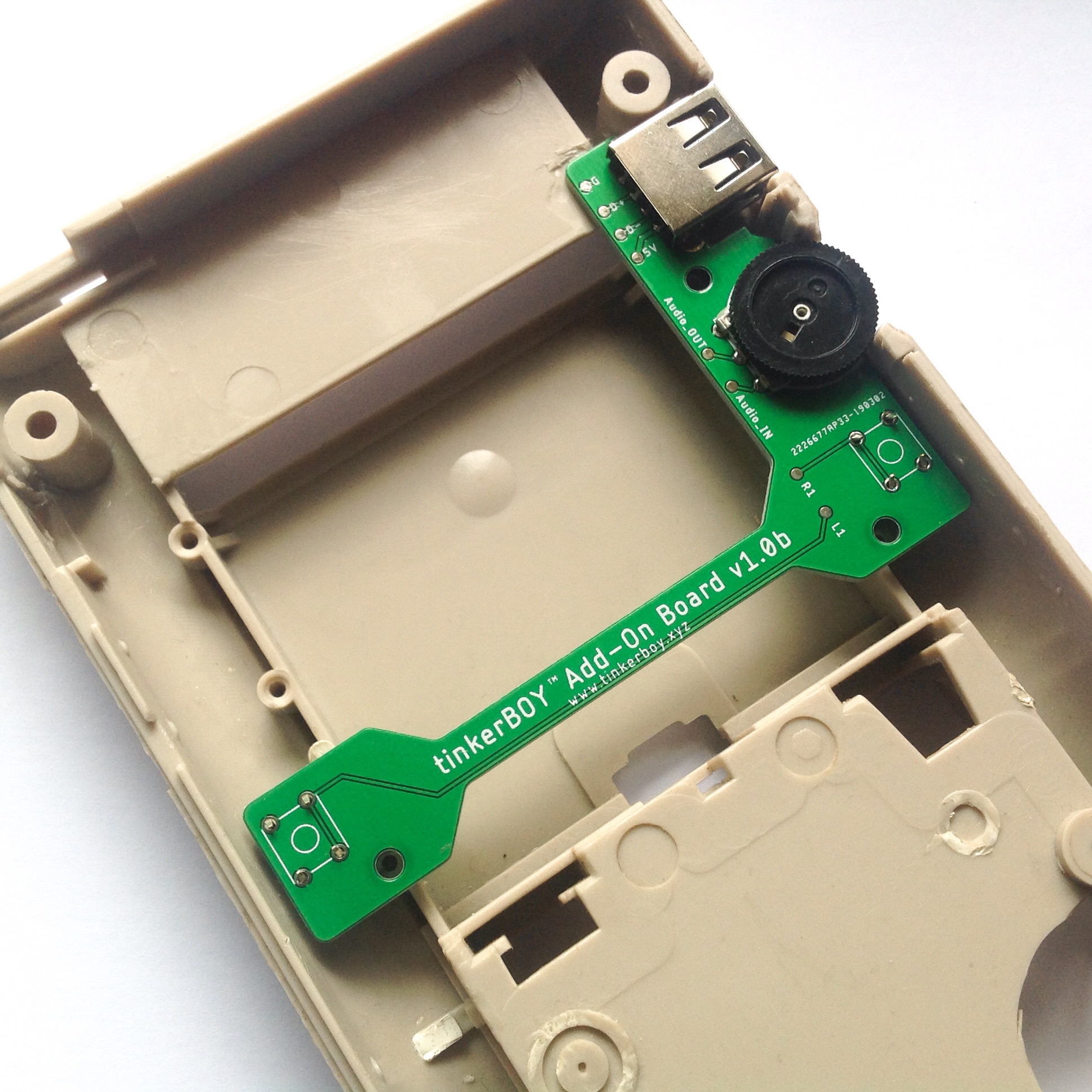

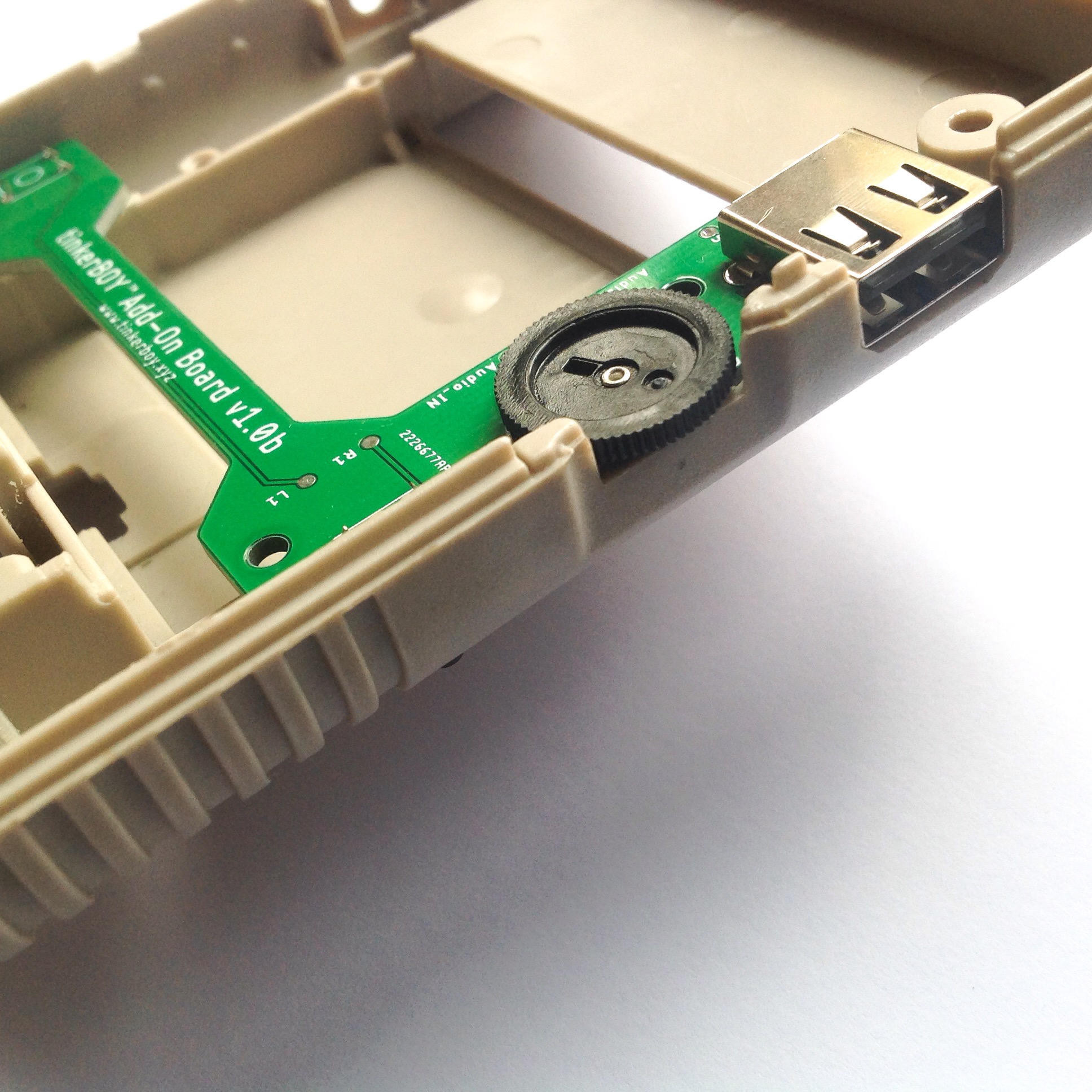

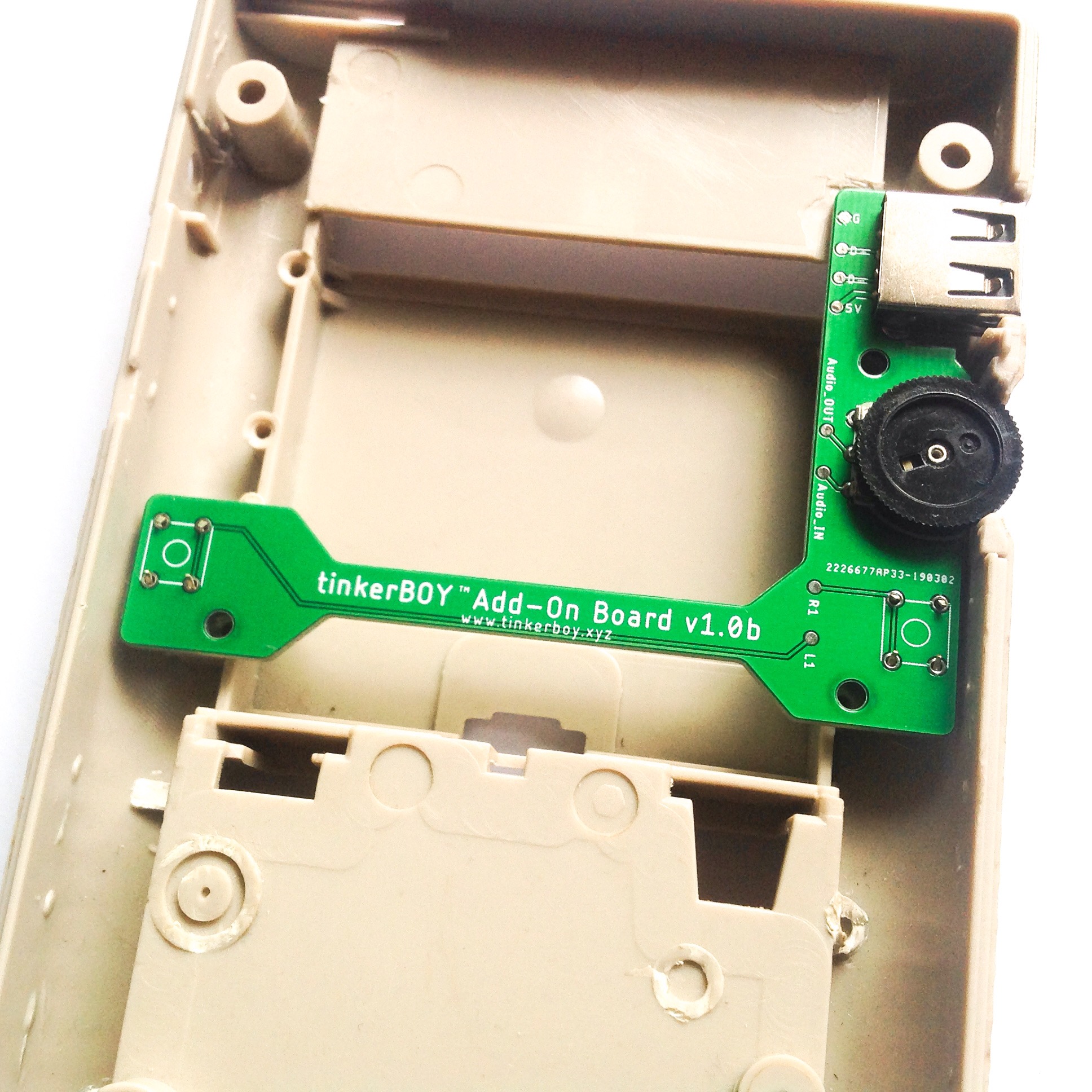

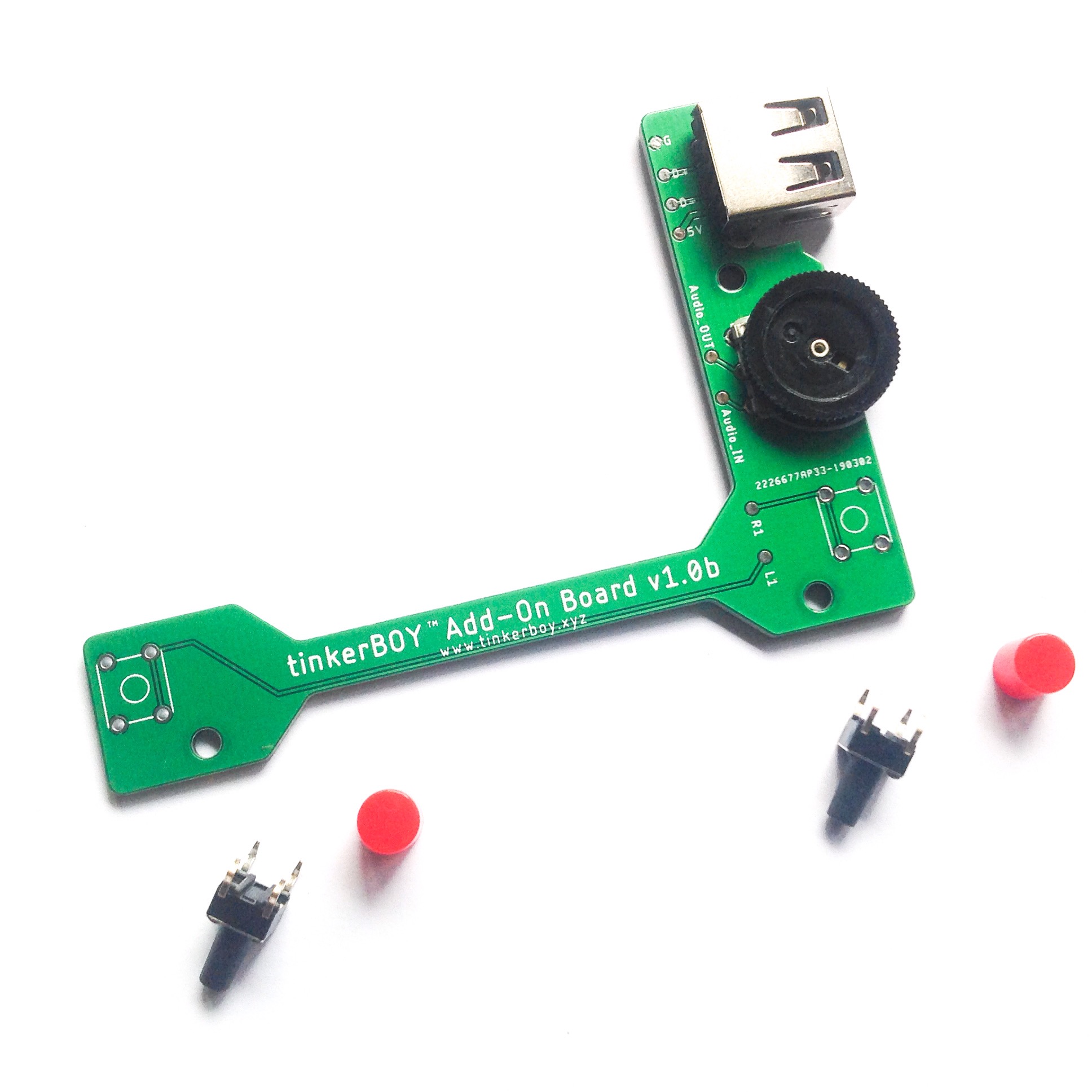

  2. tinkerBOY Add-On Board v1.0b – with back buttons (unsoldered).

The boards are compatible with all my controller boards.

*note: Volume control is reversed on PWM audio based build.

Guide:

Additional information

Options

tinkerBOY Add-On Board v1.0a, tinkerBOY Add-On Board v1.0b – BLUE, tinkerBOY Add-On Board v1.0b – RED, tinkerBOY Add-On Board v1.0b – YELLOW, tinkerBOY Add-On Board v1.0b – BLACK, tinkerBOY Add-On Board v1.0b – WHITE, tinkerBOY Add-On Board v1.0b – GREEN, tinkerBOY Add-On Board v1.0b – GRAY

3 reviews for tinkerBOY Add-On Board – with Pre-soldered USB Type A Port and 3-Pin Volume Wheel, Back Buttons

  1. Rated 5 out of 5

    Gardo

    Works great!

  2. Rated 5 out of 5

    Liath

    Hi,
    Would this work with a 3D printed LCD mount ?
    I’m thinking the one I saw recommended here : https://www.thingiverse.com/thing:2311662

    Thanks.

    • tinkerBOY

      That’s for the lcd only. The Add-On Boards don’t need any 3D printed mount.

  3. Rated 5 out of 5

    Nick

    Hello! Would there be enough room for both this and a Pi3 Model A+ like the one shown in this video?

    https://www.youtube.com/watch?v=FoJr-W_SFDU&t=542s

    • tinkerBOY

      Yes because the Add-on board is designed to be mounted inside the DMG back case while the Pi(zero, 3, or 4) along with my Dpi Adapter can be placed inside the dmg front case.
